4 Channel LED RF Controller RGBW/RGB/CCT/Dimming Controller PWM Constant Voltage Controller 12-24V

Technical parameters

Input voltage: 12-24VDC

Output type: PWM constant voltage

Output current: max 6A/CH, Total max 15A

Grey levels: 4096/CH

Dimming range: 0-100%

Remote distance: 30m

Working temperature: -30¡æ~55¡æ

Product size: L114¡ÁW38¡ÁH20mm

Net weight: 53g

Summary

1. Mini style LED controller with DC power socket input and 4 channel constant voltage output.

2. Default as RGB/RGBW controller, need match RGB/RGBW remote, create colorful static or dynamic effect.

3. Can also be used as color temperature or dimming controller, good compatibility.

4. Full compatibility with a variety of single color, dual color and RGB/RGBW remote.

5. Smooth dimming and switch without any flickering.

6. When control RGB/RGBW light, built in 10 mode, include jump or gradual change style.

7. Adopt 2.4GHz wireless technology, can accept up to 10 remote control.

8. Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

9. Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under same dynamic mode and same speed.

10. Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
11. User can customize own RGB change mode list by APP for advanced function.

12. Can connect with unlimited number of 4CH CV or CC power repeaters in series or in parallel to expand output power, achieve synchronous control effect.

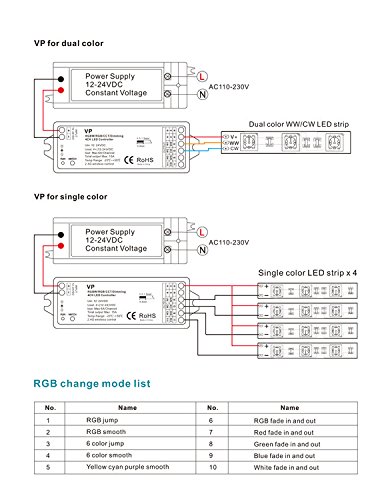

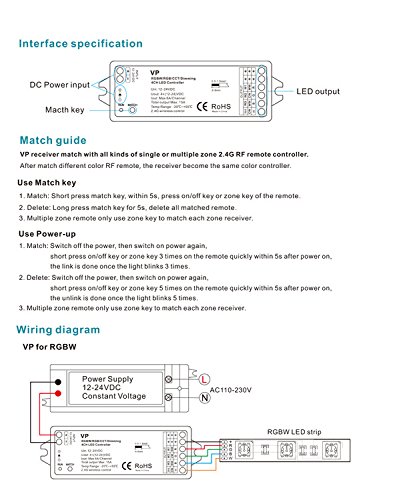

4 Channel RGBW/RGB/CCT/Dimming Controller
Input voltage: 12-24VDC
Output type: PWM constant voltage
Output current: max 6A/CH, Total max 15A
Grey levels: 4096/CH
